New Generation DAF XD and XF Electric
Driving zero emissions
Ready for the fully electric future
More and more European municipalities are announcing that, in the future, only zero-emission vehicles will be allowed on inner-city roads. As a result, fully electric trucks will become a must for transport companies operating in urban areas. The New Generation DAF XD and XF can be fitted with a fully electric PACCAR e-powertrain enabling you to meet new regulations and contribute to healthier cities. PACCAR e-powertrains have been fully tested, offering efficient charging systems, robust electric motors and a large geographical range. With this flexible, high-performance solution, you can deploy a battery electric vehicle for distribution and municipal applications in rural areas.
State-of-the-art electric engines

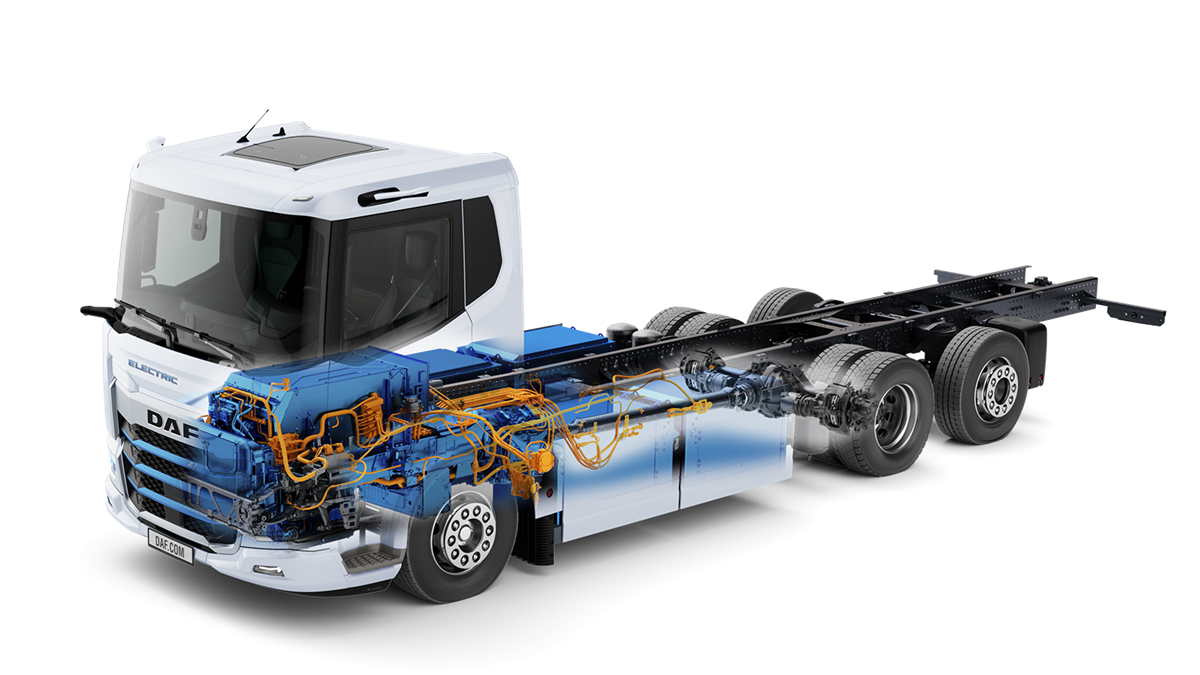

The advanced DAF XD and XF Electric trucks are powered by the efficient and reliable PACCAR EX-D1 and PACCAR EX-D2 permanent magnet e-motors, which offer outputs from 170 kW/230 hp to 350 kW/480 hp. To perfectly tailor these electric vehicles to your needs and application, a full range of battery packs with 2 up to 5 strings is available, resulting in ‘zero emission’ ranges of over 500 kilometers on a single charge. As a result, through optimal vehicle and charging planning, the trucks can even realize an impressive 1,000 fully electric kilometers per day.
|Vehicle type||e-Motor||Engine output||Torque||Number of strings||Output battery pack|
|DAF XD Electric||PACCAR EX-D1||170 kW (230 hp)||1,200 Nm||2 to 5 strings||210 kWh to 525 kWh|
|DAF XD Electric||PACCAR EX-D1||220 kW (300 hp)||1,200 Nm||3 to 5 strings||315 kWh to 525 kWh|
|DAF XD Electric||PACCAR EX-D1||270 kW (370 hp)||1,200 Nm||3 to 5 strings||315 kWh to 525 kWh|
|DAF XD / XF Electric||PACCAR EX-D2||270 kW (370 hp)||1,975 Nm||3 to 5 strings||315 kWh to 525 kWh|
|DAF XD / XF Electric||PACCAR EX-D2||310 kW (420 hp)||1,975 Nm||4 or 5 strings||420 kWh or 525 kWh|
|DAF XD / XF Electric||PACCAR EX-D2||350 kW (480 hp)||1,975 Nm||4 or 5 strings||420 kWh or 525 kWh|
Fast DC charging standard, AC charging optional
The New Generation XD Electric and XF Electric can be fast charged with powers up to 325 kW, allowing to boost a 3-string battery pack in just over 45 minutes from 0 to 80% of its capacity. Even the largest battery pack can be fully charged from empty to 100% in less than 2 hours.
Optional is an on-board charger with the capability of AC current charging of up to 22 kW. This provides highest flexibility to operate the vehicle, even in remote areas.
Supporting your transition to electric driving

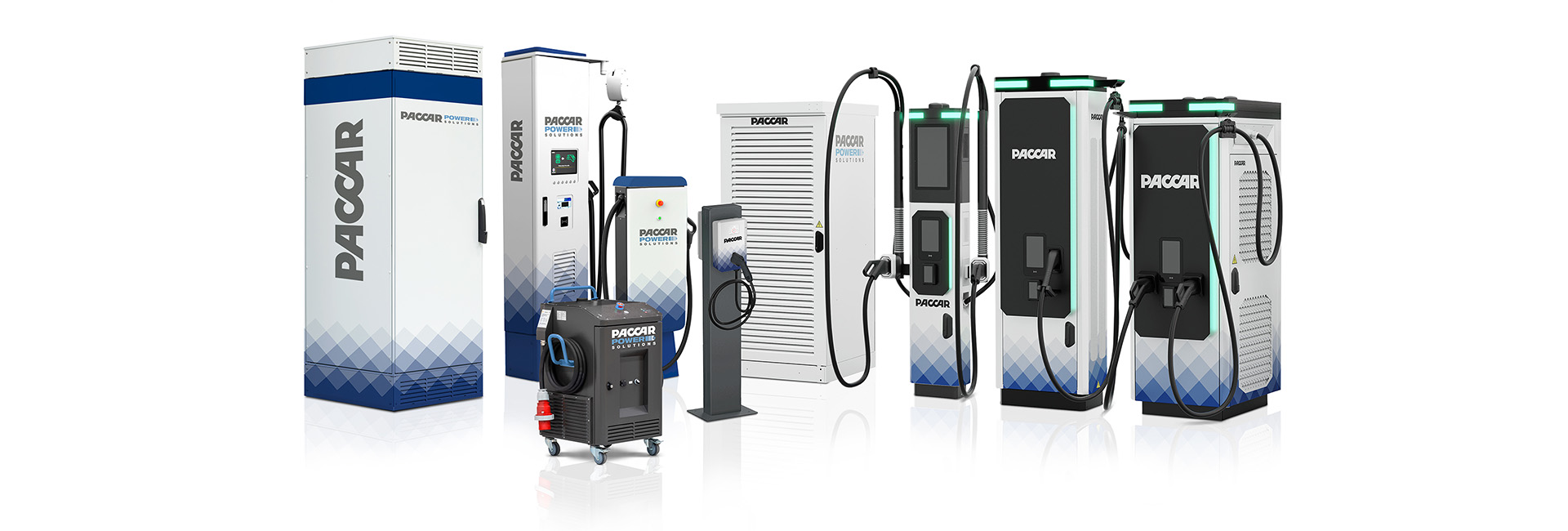

Our DAF dealers support you with tailor-made sales advice based on advanced route simulation models for a smooth conversion to zero emission e-trucks. Furthermore, they offer operational support through a full array of premium PACCAR Chargers, perfectly tuned to the new XD and XF Electric trucks.
The comprehensive range includes fixed charging solutions with powers up to 50 kW using standard AC current and up to 350 kW for ultra-fast DC charging. In addition, there are also mobile chargers available, providing maximum flexibility.
